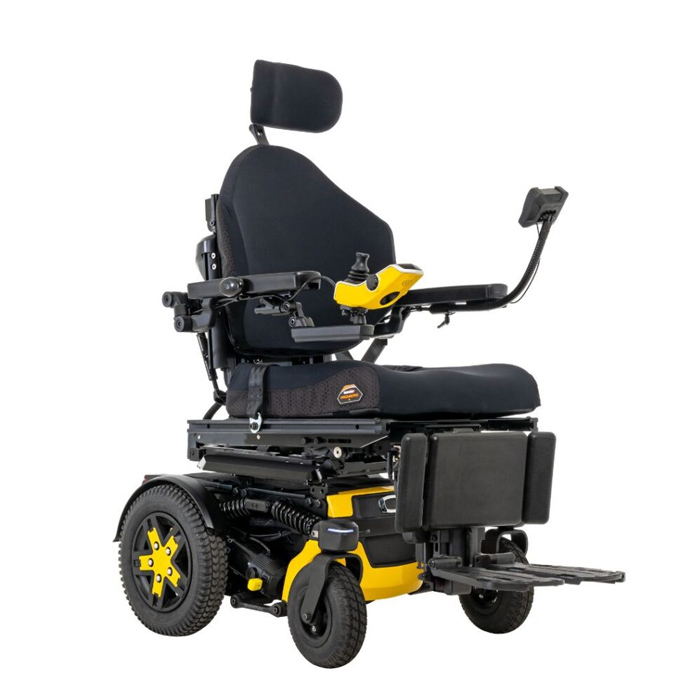

R-Trak
The Quantum R-Trak Power Wheelchair gives you the smoothest and most controlled ride you’ve ever experienced. It combines the stability of a rear-wheel drive with an easy-to-operate ride across all different terrains. Showcasing an impressive Smooth Ride Suspension (SRS) system, this powerchair promises an all-over exceptional performance. Our R-Trak has a well-balanced centre of gravity, excellent stability, increased traction on uneven surfaces and a reduced impact on environmental obstacles. This means that you can have a comfortable and reliable ride every day, no matter the terrain you’re navigating. It’s the perfect option for those with highly active lifestyles because it never holds you back.
Our Quantum R-Trak Wheelchair also boasts a sleek design that comes with new detailing for an elegant yet powerful solution. With a compact 615mm base, it offers improved manoeuvrability compared to traditional rear-wheel drive chairs. This means that you can freely explore the outdoors with no limitations, while also navigating tight indoor spaces with ease! The R-Trak gives quality, premium features to make every ride smooth and comfortable, such as 10 inches of Powered Safe Seat Elevation – all while reaching a top speed of 7mph (3.5mph when elevated). Alongside this, you gain 50 degrees of tilt, making it one of the best elevating powerchairs you can have.
For a Free Assessment call us on 0151 420 1352
Technical Specifications
| Drive Configuration | Rear-wheel Drive |
| Weight Capacity | 21.6st (136 kg) |
| Turning Radius | 25.7 in. (653 mm) |
| Length | 34.8″ (884 mm) |
| Width | 24.2″ (615mm) with 14″ wheels 26.2 (665mm) with knobby wheels |
| Ground Clearance | 3.97″ (101 mm) |
| Max Obstacle Climbing | 2.36″ (60 mm) |
| Max Slope Rate | 7.5° (13.2%) |
| Base Weight | 58 kg |
| Castor Wheels | 9″ solid |
| Drive Wheels | 14″ x 3″ / 14″ x 4″ knobby – Solid or Pneumatic |
| Anti- tip Wheels | 4″ (102 mm) |
| Battery Size | 2x 70 Ah |
| Speed | 4 mph (6.44 kmh) / 6 mph (9.65 kmh) / 7 mph (11.26 kmh)) |
| Motor Package | 2-Pole / 4-Pole, Rear-wheel |
| Suspension System | SRS (Smooth Ride Suspension) |
| Electronics | Q-Logic NES / Q-Logic 3 |
| Seats | Contour / TB Flex / TB3 |
| Seat Width | 12″ – 22″ |
| Seat Depth | 12″ – 22″ |
| Powered Positioning | Tilt / Recline / Lift / Legs |
| Seat Lift | 10″ lift @ 3.5 mph |
| Standard Features | USB charger port and front & rear LED fender lights |
| Crash Tested | Yes |
| Colours | 14 vibrant colour options |
