Quickie Q500F
Robust outdoor power wheelchairs

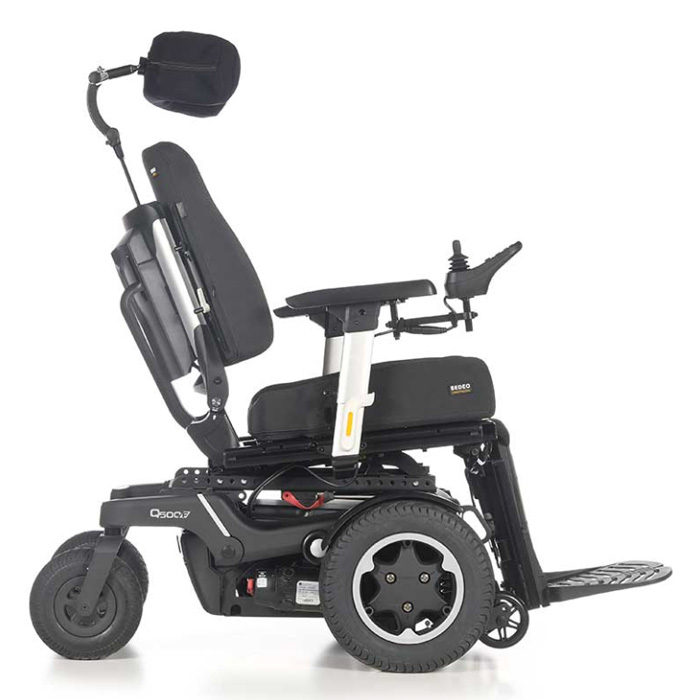

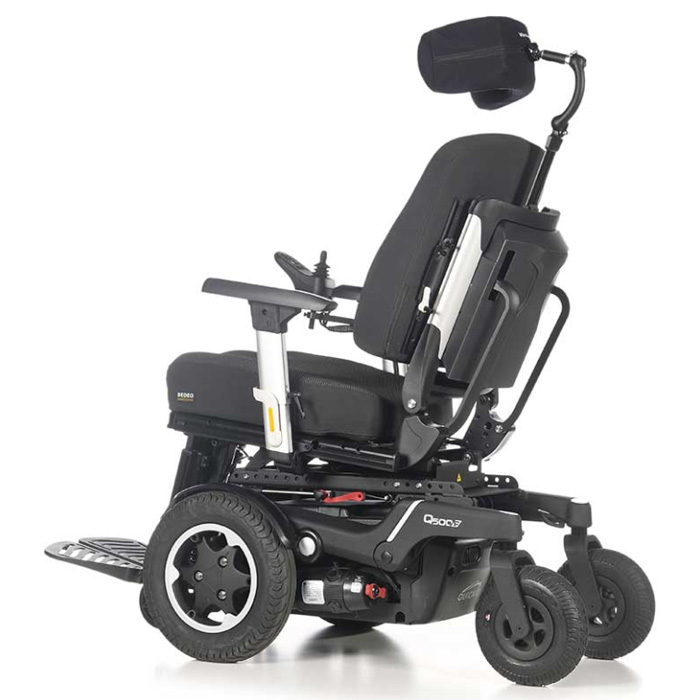

The new QUICKIE Q500® F front-wheel drive wheelchair offers great outdoor performance with good indoors manoeuvrability, and best stability on steep declines. Combined with the benefits of the highly adjustable and fully configurable SEDEO® PRO seating and the most advanced controls, creates the perfect powered wheelchair for any adventure.
For a Free Assessment call us on 0151 420 1352
Technical Specifications
Dimensions
| Width: | 640 mm |
| Length: | Max. 1340 mm |
| Seat Width: | 380 – 560 mm |
| Seat Height: | 415 – 490 mm |
| Seat Depth: | 400 – 560 mm |
| Backrest Height: | 440 – 560 mm |
| Back Recline: | 90° – 150° |
| Turning Radius: | 735 mm |
Performance/Weights
| Max. Range: |
40 km
|
| Speed: | 6 & 8 kph (standard), 10 & 13 kph (optional) |
| Batteries: |
60 Ah, 80 Ah (optional)
|
| Maximum Safe Slope: | 6° |
| Max Kerb Climb: | 70 mm |
| Electronics: | VR2, R-Net controller; lights & indicators |
| Maximum User Weight: | 160 kg |
Transportation
| Crash Tested? | This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19 |
As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
