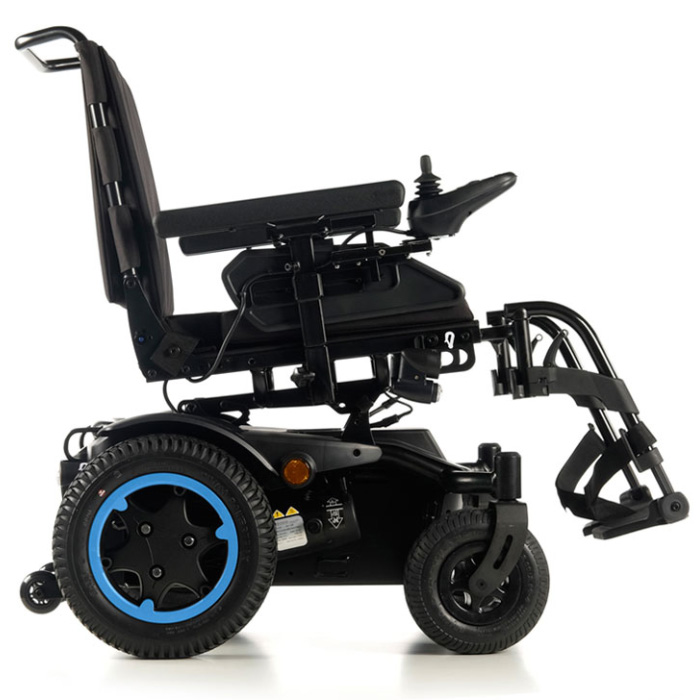

Quickie Q200R
The ultra-compact indoor / outdoor entry level powerchair.
QUICKIE Q200 R uses an innovative testing method called SMART base technology. This helped us to understand how geometry changes to a drive base can affect performance, creating a precision-measured TRUE indoor/outdoor powerchair.
From SMART base development the Q200 R powerchair boasts a small footprint of 580 mm wide and 1070 mm long, with a 1700 mm turning circle, so navigating even the tightest of spaces is a breeze.
Going out? The QUICKIE Q200 R is a step up from the Q100 R in terms of outdoor performance. The Q200 provides greater stability to prevent tipping and is ideal for the taller and larger user, with a max. weight of 136kg. Using the Q200 R it’s no uphill struggle, with its larger castor wheels it can tackle any open-air terrain. The Q200 R provides excellent outdoor performance as it easily manoeuvres through uneven and hilly territory with the ability to tackle hills of up to 8 degrees.
Unbelievably light at 98 kg with a fold down back, the Q200 R is also easy to hoist in and out of your car.
For a Free Assessment call us on 0151 420 1352
Overview
Sit back and relax
The Q200 R‘s seating has been designed to fit you. With plenty of settings and a 5-strap tension adjustable back to meet postural requirements, take comfort in knowing that if your needs change, so can your seat.
Seat adjustments include:
- Seat width from 380-490mm with optional in-rig kit
- Seat depth from 405 – 505 mm
- Optional Legrest width from 15 – 19”
- Backrest angle from 0, 4, 8 and 12 degrees
- Seat angle from 0, 3 and 6 degrees
- Side guard from 0 – 50 mm
- Optional seat height from 450 – 490 mm
- Armrest height 230 – 305 mm
Technical Specifications
Dimensions
| Width: | 1010 mm (39.5”) |
| Length: | 540 mm (21”) |
| Seat Width: | 430 – 500 mm (17” – 19”) |
| Seat Height: | 450 mm (17.5”) |
| Seat Depth: | 405 – 505 mm (16” – 20”) |
| Seat Tilt: | 0° – 6° |
| Backrest Height: | 500 mm (20”) |
| Back Recline: | 0°, 4°, 8° & 12° (manual) |
| Turning Radius: | 1600 mm (63”) |
Performance/Weights
| Max. Range: | 31 km (19 miles) |
| Speed: | 6 kph |
| Batteries: | 55 Ah |
| Maximum Safe Slope: | 6° |
| Max Kerb Climb: | 70 mm – 100 mm (with Kerb Climber) |
| Electronics: | VR2 |
| Min. Weight: | from 95 kg (incl. 55 Ah batteries) |
| Maximum User Weight: | 125 kg |
Transportation
| Crash Tested? | This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19 |
