QS5 X
Experience FreeFold and save over 40% energy with every fold!

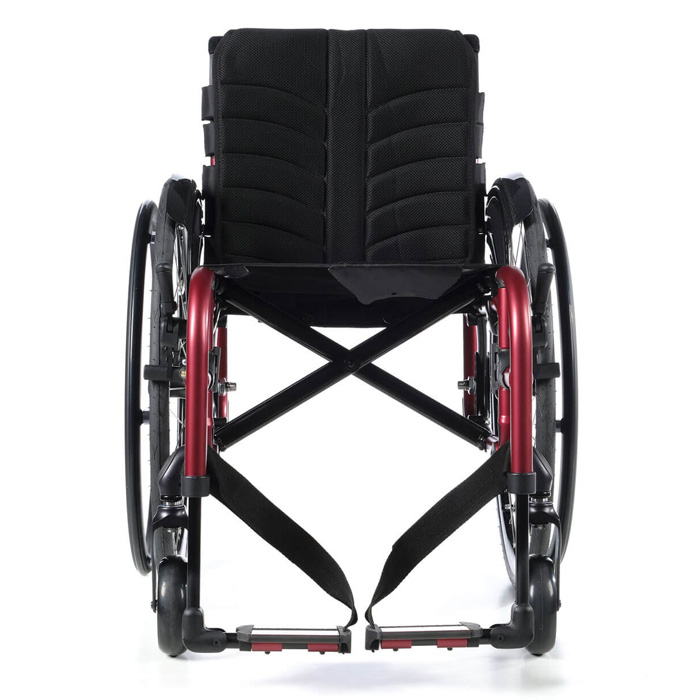

Introducing the QUICKIE QS5 X, the wheelchair that redefines easy folding thanks to FreeFold – an innovative cross-brace design that reduces folding forces and saves you over 40% energy with every fold! The QS5 X makes light work of lifting too, with an (optional) folding fixation that keeps your wheelchair tightly-locked to prevent any unintentional opening during transport.
Weighing from just 7.3 kg (without wheels), it’s the lightest aluminum box frame wheelchair too. Made from heat-treated 7000 series Aluminium, lock-out the frame and its oval-tubed 4-arm cross brace provides the ride performance to rival any rigid wheelchair. Saving not just energy, but your shoulders too.
Technical Specifications
| Frame Angle: | Swing Away: 70/80/90°, Fixed-Front: 75/85° |
| Maximum Safe Slope: | 7° |
| Rear Wheel Size: | 22″, 24″, 25″, 26″ |
| Front Wheel Size: | 4″, 5″, 6″, 7″ |
| Maximum User Weight: | 140 kg |
| Total Weight: | Swing Away: From 10.1 kg, Fixed Front: From 9.9 kg |
| Dismantled Weight: | Swing Away: From 7.5 kg (without rear wheels), Fixed Front: From 7.3 kg (without rear wheels |
| Height: | 1020 mm |
| Seat Width: | 340 – 520 mm (in 20 mm steps) |
| Seat Depth: | 340 – 500 mm |
| Front seat height: | 360 – 540 mm |
| Rear seat height: | 350 – 520 mm |
| Backrest Height: | 250 – 500 mm |
Transportation Crash Tested?
This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19
